Wireless IP Microwave for HuaWei RTN950A RTN IDU 950A 4 GE RJ45 SFP E1 STM SL91ISV3

Name: Wireless IP Microwave for HuaWei RTN950A RTN IDU 950A 4 GE RJ45 SFP E1 STM SL91ISV3
Brand: for HuaWei
Price: 710.00 USD

China Wireless IP Microwave for HuaWei RTN950A RTN IDU 950A 4 GE RJ45 SFP E1 STM SL91ISV3 wholesale

Place of Origin : Guangdong, China

Brand Name : for HuaWei

Model Number : RTN950A

Model : 2312RPE SLFMSITE23 RTN950A

Frequency band : 6 ~ 42 GHz

interface : 4 * GE (RJ45)+2 * 10GE (SFP+)+16 * E1+2 * GE/STM-1 (SFP)

Master control exchange clock board : CSHO

Channel spacing : 3.5/ 7/14/28/40/56/112 MHz

Modulation mode : QPSK Strong~4096QAM

Intermediate frequency board : SL91ISM6 SL91ISM8 SL91ISV3

Interface type : E1,T1,STM-1(e/o),FE(e/o),GE(e/o), 2.5GE(o) ,10GE(o)

IDU weight : 5.4 kg(1+0) 6.2 kg(1+1)

IDU size : 442 mm *220 mm *88 mm

Price : $710.00 - $3,200.00/units

Contact Now

Product display

RTN950A

code Model Basic configuration

02312RPE SLFMSITE23 RTN 950A basic configuration unit 4 * GE (RJ45)+2 * 10GE (SFP+)+16 * E1+2 * GE/STM-1 (SFP) with IDU installation accessories

Products Description

Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/ 7/14/28/40/56/112 MHz
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM
Maximum number of RFUs	Based on the RTN950A technical specifications
RF direction	12
Air port capacity	Single carrier 1166~2500 Mbit/s (non XPIC)
Exchange capacity	90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM交叉容量	32×32 VC-4
Link Aggregation	2-4
Interface type	E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o），10GE（o）
Transmission power @ QPSK	Based on the RTN950A technical specifications
Super Dual Band	Based on the RTN950A technical specifications
L3 VPN	Based on the RTN950A technical specifications
Support eCPRI	Based on the RTN950A technical specifications
RF configuration method	N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO
Function	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
Business type	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
Key Features	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
Antenna	Parabolic antenna: 0.3m~3.7m
IDU weight	5.4 kg（1+0） 6.2 kg（1+1）
IDU size	442 mm × 220 mm × 88 mm
Environment	Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
Power supply	-38.4 V~-57.6 V
Authenticated document	CE、RCM、 FCC、IC、ETL、MCMC

COMPANY PROFILE

Why Choose Us

Exhibition

Certifications

Client Evaluation

Packing & Delivery

1. Who are we?
We are based in Beijing, China, start from 2023,sell to Domestic Market(60.00%),North America(20.00%),South America(10.00%),Western Europe(10.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Microwave Equipment, Data Communication Equipment, Transmission Equipment, Storage Device, Server

4. Why should you buy from us not from other suppliers?
Microwave equipment:RTN910A/RTN905F/RTN950/RTN950A/RTN980/RTN980L/RTN320F/RTN380AX; Wavelength division equipment:OSN9800/OSN9600/ONS8800; OLT:MA5800X2/X7; Switch:S9310X/CE6881-48S6CQ-B/CE8851-32CQ8DQ-P/CE6863E-48S6CQ. OceanStor Dorado 6000 V6/2288H V6/5288V6

5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

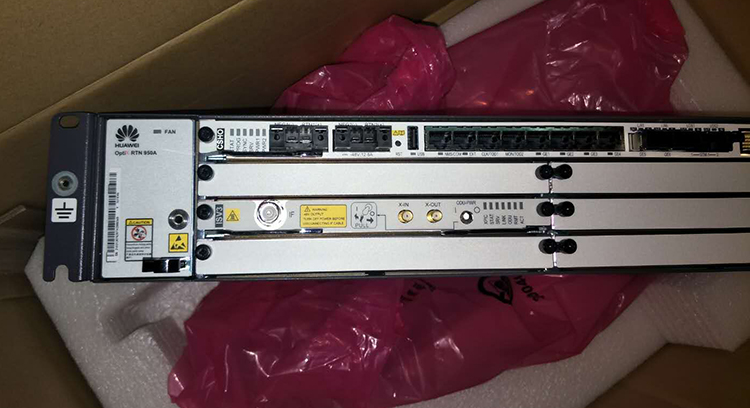

Wireless IP Microwave for HuaWei RTN950A RTN IDU 950A 4 GE RJ45 SFP E1 STM SL91ISV3 Images
