HW Optix Rtn 905F Indoor Split Type Ip Microwave Equipment for Seamless Connectivity

Model Number : RTN 905F

Type : Other

Place of Origin : Guangdong, China

Brand Name : HW

Use : Sea surface, land, hills and forests, islands

Warranty Time : 1 year

Network : Wireless Lan, TCP, Ip, wifi, IP microwave

Product name : IP microwave

Frequency band : 6 ~ 42 GHz

Channel spacing : 3.5/ 7/14/28/40/56/112 MHz

Radio-frequency direction : 12

TDM crossover capacity : 32*32 VC-4

Power supply : -38.4 V~-57.6 V

Network layer : Suitable for: access layer and aggregation layer

Channel bandwidth : Determine based on ODU bandwidth

Usage : Wireless long-distance transmission

Feature : High efficiency/High performance

Packaging Details : Carton packing or wooden case packing according to customer requirements

Port : Tianjin

Supply Ability : 1000 Carton/Cartons per Day

MOQ : 2 sets

Price : $1,335.40/sets 2-49 sets

Contact Now

PRODUCT DESCRIPTION

HW Optix Rtn 905F Indoor Split Type Ip Microwave Equipment for Seamless Connectivity

Split Type Long Range Microwave Transmission Equipment Assembly IDU RTN 905F

The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

The Huawei 6–42 GHz traditional frequency IP microwave has a maximum of 2 Gbit/s per carrier and 16 Gbit/s per antenna ultra-large transmission capacity, it is the industry’s first IP microwave that supports TDM/Hybrid/Packet/Routing services on the unified platform, satisfying the requirements of large-capacity IP service transmission and IP-based evolving of traditional PDH/SDH microwave. The solution provides a flexible architecture that can be deployed in split, full-outdoor, or full-indoor scenarios. It features high reliability and end-to-end unified O&M management. It is widely used in broadband wireless transmission in vertical sectors, such as government, broadcasting, oil & gas, education, and electric power.

All new Products Not Used Products！

TECHNICAL SPECIFICATION

Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/ 7/14/28/40/56/112 MHz
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM， 256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM， 4096QAM
Maximum number of RFUs	Based on the RTN905F technical specifications
RF direction	12
Air port capacity	Single carrier 1166~2500 Mbit/s (non XPIC)
Exchange capacity	90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM crossover capacity	32×32 VC-4
Link aggregation	2-4
Interface type	E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o），10GE（o）
Describe	OptiX RTN 905F basic configuration unit 4 * GE (RJ45)+2 * GE (SFP)+4 * 10GE (SFP+)+2 * STM-1 (SFP)+16 * E1+2 intermediate frequency unit IDU module (-48VDC) -2F with IDU installation accessories
Super dual frequency	Based on the RTN905F technical specifications
L3 VPN	Based on the RTN905F technical specifications
eCPRI support	Based on the RTN905F technical specifications
Rf configuration mode	N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO
Feature	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
Business type	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
Key characteristics	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
Antenna	Parabolic antenna: 0.3m~3.7m
IDU Weight	5.4 kg（1+0） 6.2 kg（1+1）
IDU Specification
Environment	Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
Power source	-38.4 V~-57.6 V
Certificate	CE、RCM、 FCC、IC、ETL、MCMC

COMPANY PROFILE

Why Choose Us

Exhibition

Certifications

Client Evaluation

Packing & Delivery

1. Who are we?
We are based in Beijing, China, start from 2023,sell to Domestic Market(60.00%),North America(20.00%),South America(10.00%),Western Europe(10.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Microwave Equipment, Data Communication Equipment, Transmission Equipment, Storage Device, Server

4. Why should you buy from us not from other suppliers?
Microwave equipment:RTN910A/RTN905F/RTN950/RTN950A/RTN980/RTN980L/RTN320F/RTN380AX; Wavelength division equipment:OSN9800/OSN9600/ONS8800; OLT:MA5800X2/X7; Switch:S9310X/CE6881-48S6CQ-B/CE8851-32CQ8DQ-P/CE6863E-48S6CQ. OceanStor Dorado 6000 V6/2288H V6/5288V6

5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

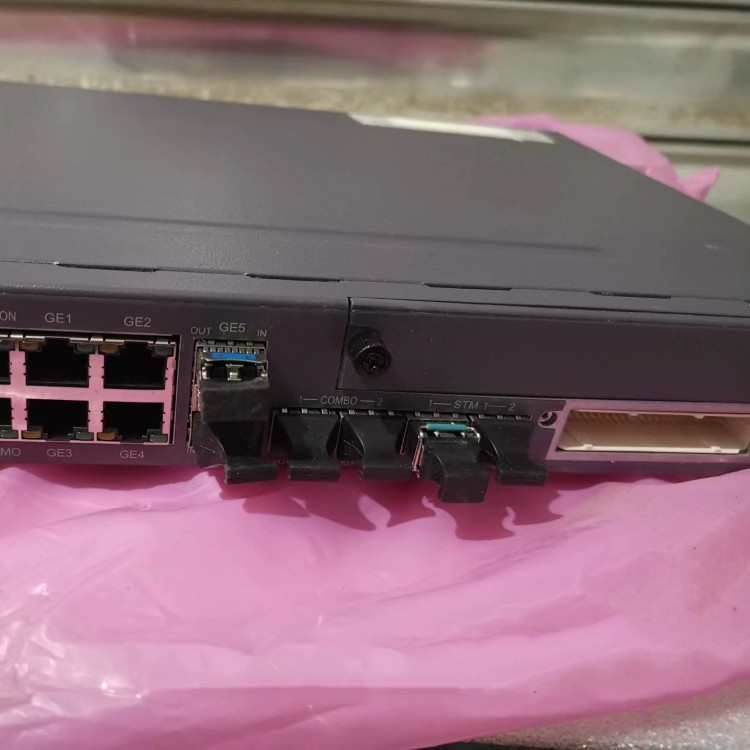

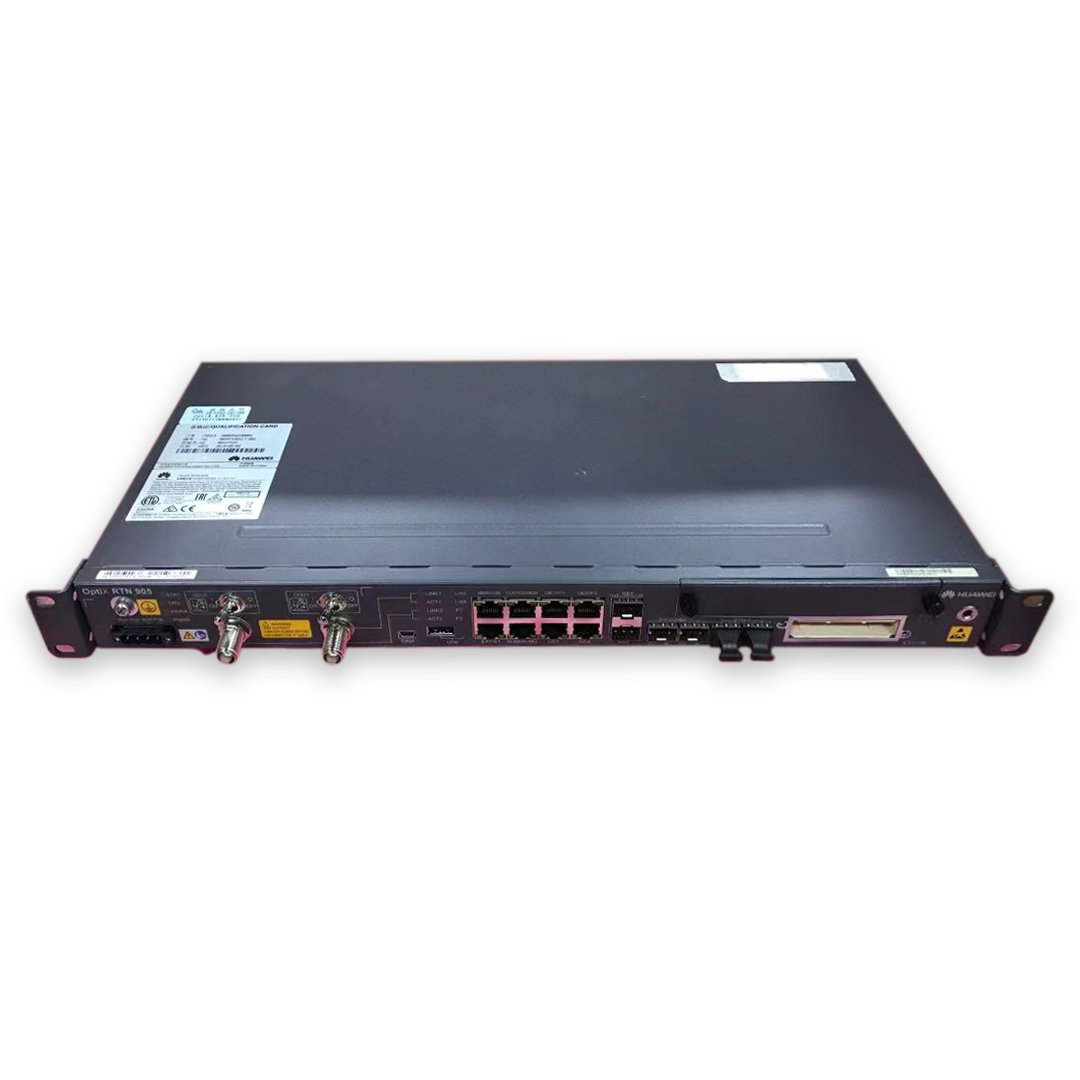

HW Optix Rtn 905F Indoor Split Type Ip Microwave Equipment for Seamless Connectivity Images
