Name: 1 Time Microwave RTN XMC 7g2 RTN380AXH ODU EBand Millimeter for HUAWEI Communication Equip
Brand: for HUAWEI
Price: 3 USD

Model Number : RTN380AXH

Type : wireless communication

Place of Origin : Guangdong, China

Brand Name : for HUAWEI

Use : Mountainous plains, hilly lakes

Warranty Time : 1 year

Network : TCP, Ip, POE, E-Band Millimeter Band Microwave, 71-86 GHz frequency band

ATPC : support

model : RTN380AXH

brand : other

producer : China

Power supply mode : Power supply method: Ethernet power supply, DC power supply

XPIVC : support

Super Dual Band : support

IGMP Snooping : support

Ethernet frame header compression : support

PWE3 : support

MOQ : 2 units

Price : $3,300.00/units 2-49 units

Contact Now

Product display

RTN380AXH

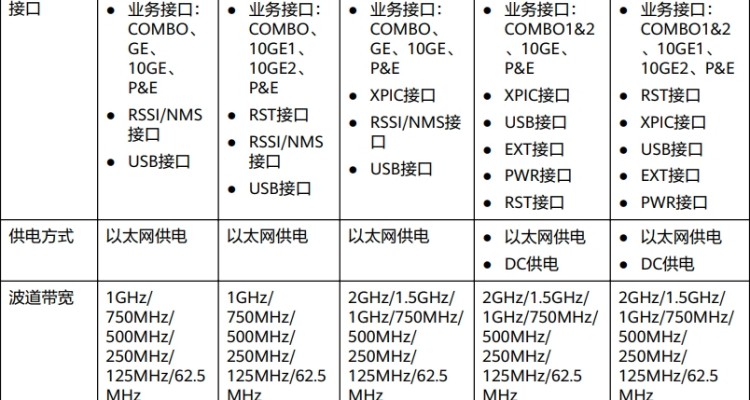

Differences between RTN 380A, RTN380AN, RTN 380AX, and RTN380AXH

Products Description

classification	Wireless transmission
Frequency band	71 ~ 86 GHz
Gbit/sMaximum bandwidth of air port	6Gbit/s
Maximum throughput of air ports	.7.6 Gbit/s
channel spacing	62.5 MHz，125 MHz，250 MHz，500 MHz，750 MHz，1000 MHz
ATPC maximum adjustment speed	30dB/s
ATPC automatic threshold enable	support
version	V100R009C10
modulation mode	BPSK，QPSK，8PSK，16QAMa， 32QAM，64QAM，128QAM， 256QAM，512QAM
RF configuration method	1+0 configuration ● 2+0 configuration 1+1 HSB protection configuration ● CCDP configuration ● Multi directional configuration
Business type	● Native Ethernet services: E-Line and E-LAN ● Ethernet services carried by PW: E-Line, E LAN (VPLS)
Antenna	Parabolic antenna: 0.3m~0.6m
Power supply	-38.4 V~-57.6 V
